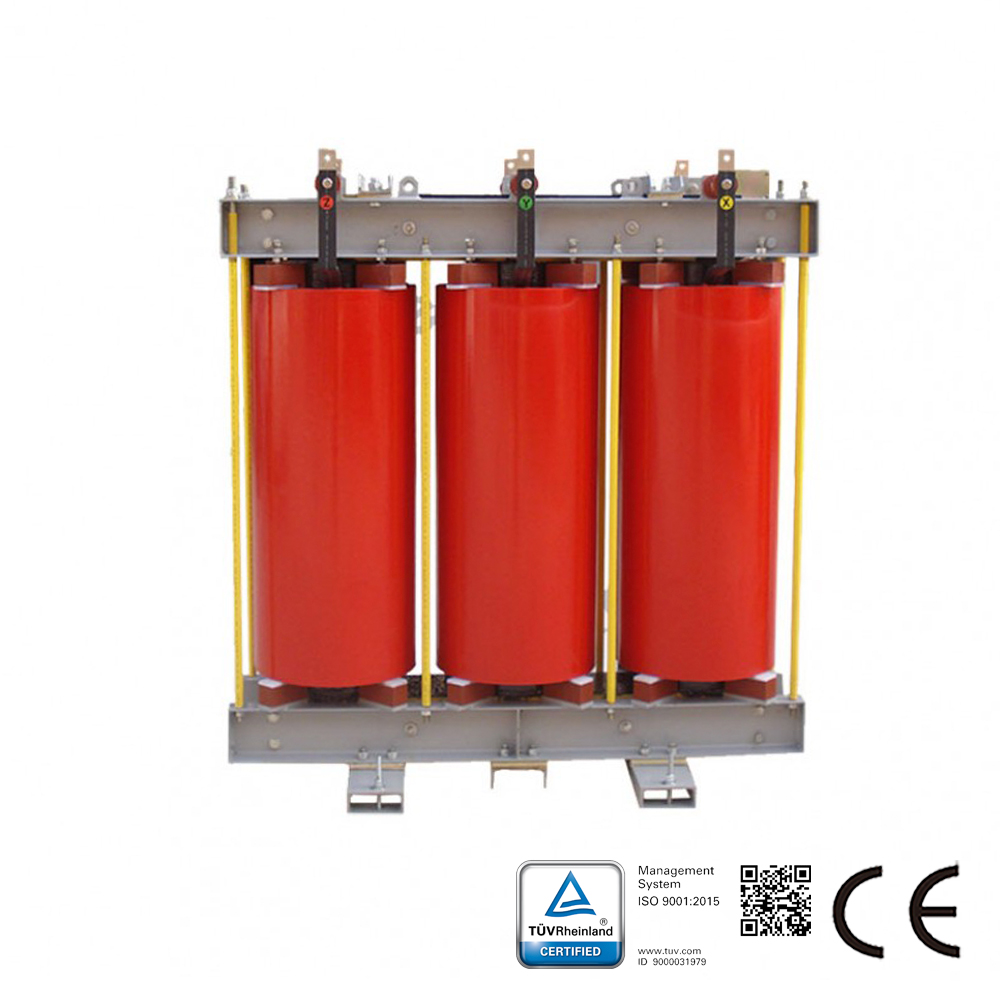

CKSC Series is suitable for power system of AC 50Hz rated operating voltage up to 6-38KV, with high voltage capacitor group in series. It can restrain from the high harmonic closing surge and operating overvoltage. It will make capacitor group work safely, improve net voltage waveform, enhance power supply quality and make power net work economically.
Characteristic of this series:
Capacity: 3KVA-720KVA
Phase type: three phase
System voltage: 6.3/6.6/11/12KV
Impedance: 1%/4.5%/5%/6%/12%/13%
Operating frequency: 50-60Hz
Protection class: IP00
Insulation class: F/H
Industrial standard: GB 10229, IEC289,JB/T5346
Application of Series connection Choke：
For power system.
| AC/DC | AC |
| IP Class | IP00 |
| Phase | 3 Phase |
| Power range (KW) | 3-720 |
| System Voltage(KV) | 6.3/6.6/11/12 |
| Operating frequency | 50-60Hz |
| Impedance rate | 1%/4.5%/5%/6%/12%/13% |
